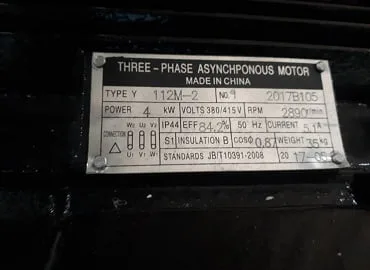

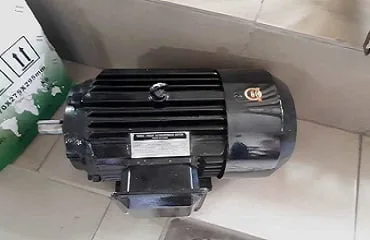

TYPE Y 112M-2 3PHASE ASYNCHRONOUS ELECTRIC MOTOR

Name: ELECTRIC MOTOR
Brand: UNBRANDED
Part Number: 112M-2
Description: ASYNCHRONOUS ELECTRIC MOTOR
Size: 5.5HP (4KW)
Rated Voltage: 380/415V (50Hz)
Category: ELECTRICAL
Class: HARDWARE
Range: MOTOR

SPECIFICATIONS:
> AMBIENT TEMPERATURE:-15ºC<0<40ºC > ALTITUDE: NOT EXCEED 1000M
> RATED VOLTAGE: 380V OR ANY VOLTAGE BETWEEN 220V-760V
> RATED FREQUENCY: 50HZ,60HZ
> INSULATION CLASS: B,F
> COOLING METHOD: IC0141
> CONNECTION: STAR-CONNECTION UP TO 4KW

FEATURES
112M-2 SERIES MOTOR IS TOTALLY ENCLOSED SELF-FAN-COOLED SQUIRREL CAGE THREE-PHASE ASYNCHRONOUS MOTOR, WHICH IS THE BASIC SERIES OF THE LATEST DESIGN.
IN ACCORDANCE WITH THE RELEVANT PROVISIONS OF THE IEC STANDARD, WITH HIGH EFFICIENCY, ENERGY SAVING, HIGH STARTING TORQUE, LOW NOISE, SMALL VIBRATION, HIGH RELIABILITY, EASY TO USE AND CONVENIENT MAINTENANCE AND SO ON.
THE GENERAL SITUATION IS WIDELY USED IN INFLAMMABLE, EXPLOSIVE OR CORROSIVE GAS, AND NO SPECIAL REQUIREMENTS TO THE MECHANICAL EQUIPMENT, SUCH AS METAL CUTTING MACHINES, PUMPS, FANS, MIXER, AGRICULTURAL MACHINERY, TRANSPORT MACHINERY AND FOOD MACHINERY ETC.

Product Condition: NEW
