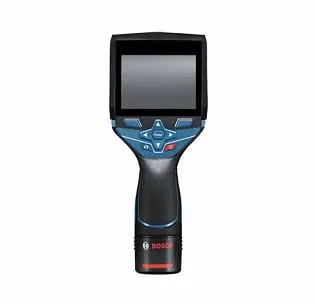

BOSCH GTC 400 C PROFESSIONAL THERMO DETECTOR/CAMERA

Product Name: Thermo camera

Brand: Bosch

Part No: GTC 400 C

Description: Thermo detector/Thermo camera

Capacity/Size: 3.5″ (Display size)

Category: Measuring and Detection

Class: Measuring Technology

Range: Detectors

FEATURES:

><  Fast exchange of data and easy documentation of thermal images with the Bosch Thermal App
><  Picture-in-picture technology overlays thermal and real images for easy-to-see localisation of the measurement
><  Flexible battery system can be powered by a 12 V LI-ION battery or with standard alkaline batteries
><  Thermal information can be simply visualised to easily support many project phases

SPECIFICATION:

Number of measuring points:   19200

Supported Android devices:   Smartphone with Android 6.0 or higher

Dust and splash protection:  IP 53

Measuring application:   Thermal image

Size of IR sensor:   160×120 px

Height:   63 cm

Width:   95 cm

Frame buffer (number of images):   500

Supported iOS devices:  iPhone with iOS 11 or higher

Memory type:   Internal memory

Data transfer:  Micro-USB, Wi-Fi

Length:  233 cm

Storage temperature:   -20 – 70°C

Power supply and runtime:   4 x 1.5 V LR6 (AA) 1 x GBA 12V 1 x GBA 10.8V

Size of display:  3,5″

Measuring accuracy of IR:   ± 3.0 °C* (*plus use-dependent deviation)

Measurement range:   -10 °C to +400 °C

Thermal sensitivity (NETD):   <50 mK

Field of view (FOV):   53×43°

Focus distance, minimum:  0.3 m

Operating temperature:   -10 – 45°C

Weight:: 0.54 kg

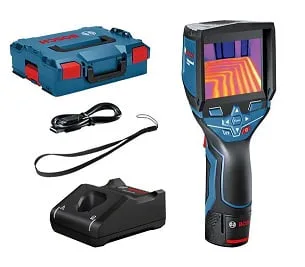

Accessories Included:

>  1 x battery GBA 12V 2.0Ah (1 600 Z00 02X)
>  L-BOXX 136 (1 600 A01 2G0)
>  L-BOXX inlay for tool
>  L-BOXX inlay accessories
>  Quick charger GAL 12V-40 Professional (1 600 A01 9R3)
>  Micro USB cable (2 609 120 670)
>  Hand strap

Condition: NEW
